GCSE Higher Elevation and Plans Questions

1 elevation and plans questions from Edexcel GCSE Maths Higher tier past papers with mark schemes.

1 questions Higher tier

Q3

Elevation and Plans

Edexcel GCSE June 2024 3 marks Paper 3Calculator Higher

▼

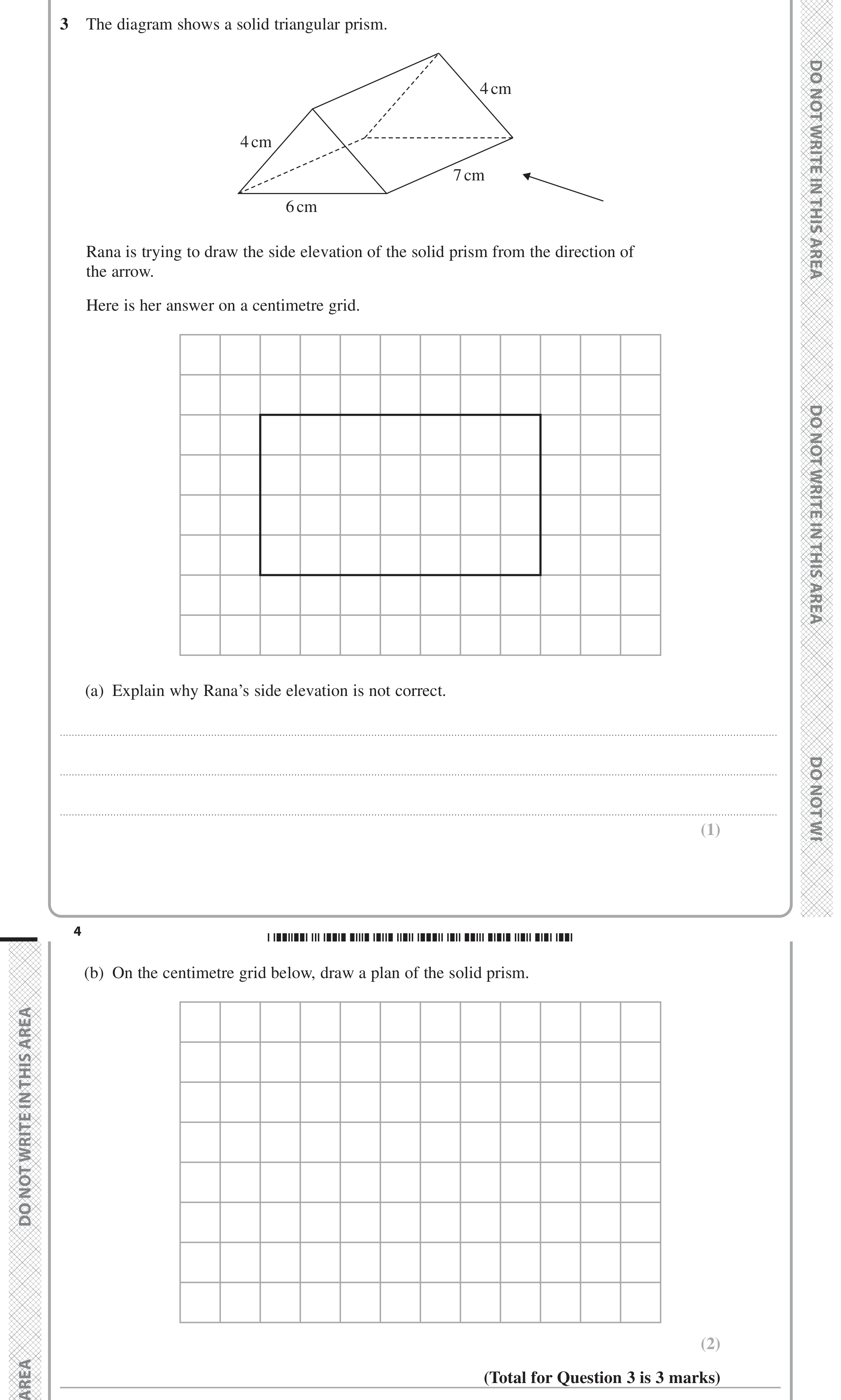

Question 3 — Elevation and Plans — Edexcel GCSE June 2024

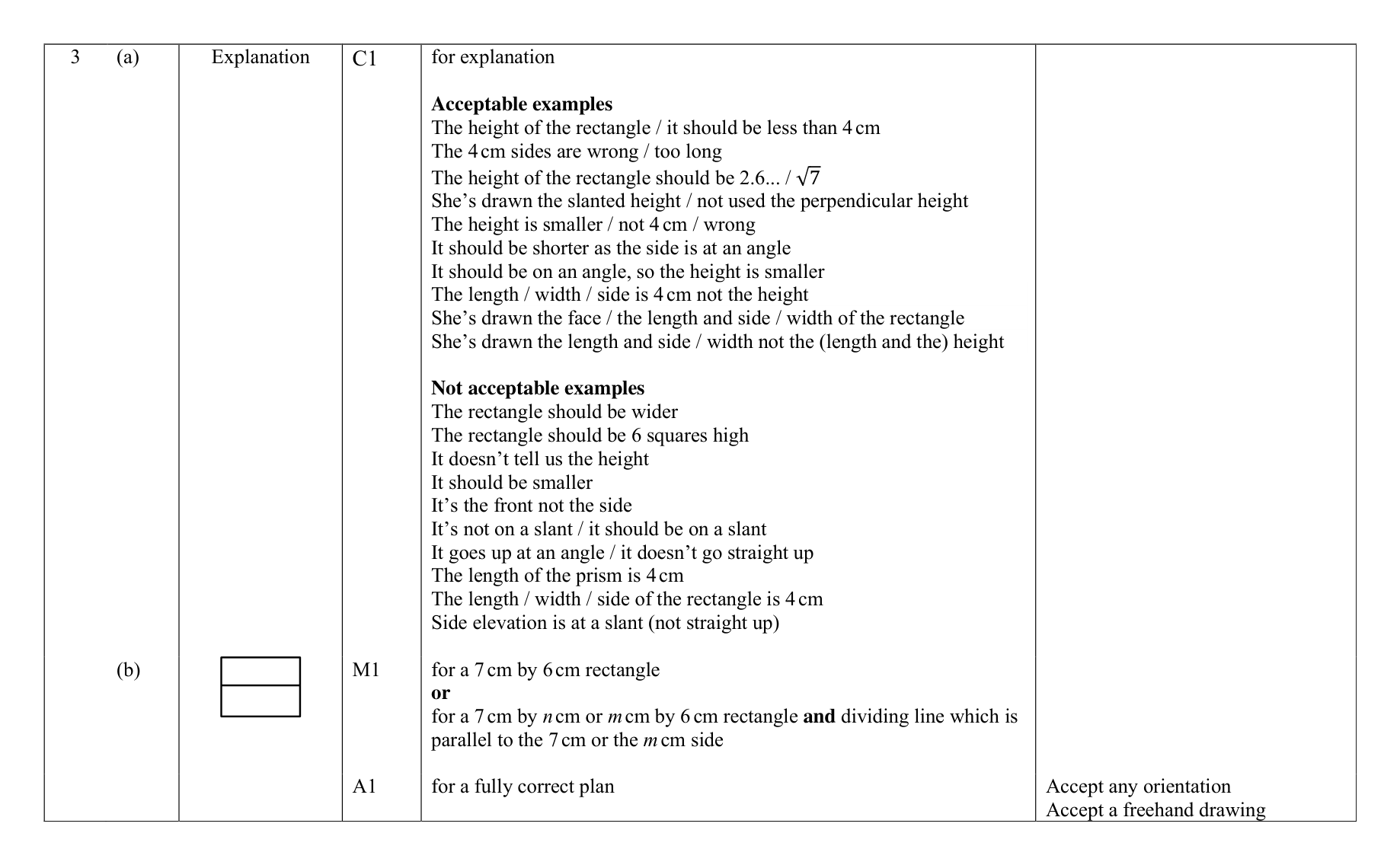

Mark scheme for Q3
