AS Maths Velocity Time Graphs Questions

14 velocity time graphs questions from Edexcel, OCR and AQA AS Maths past papers with mark schemes.

14 questions Mechanics
Search

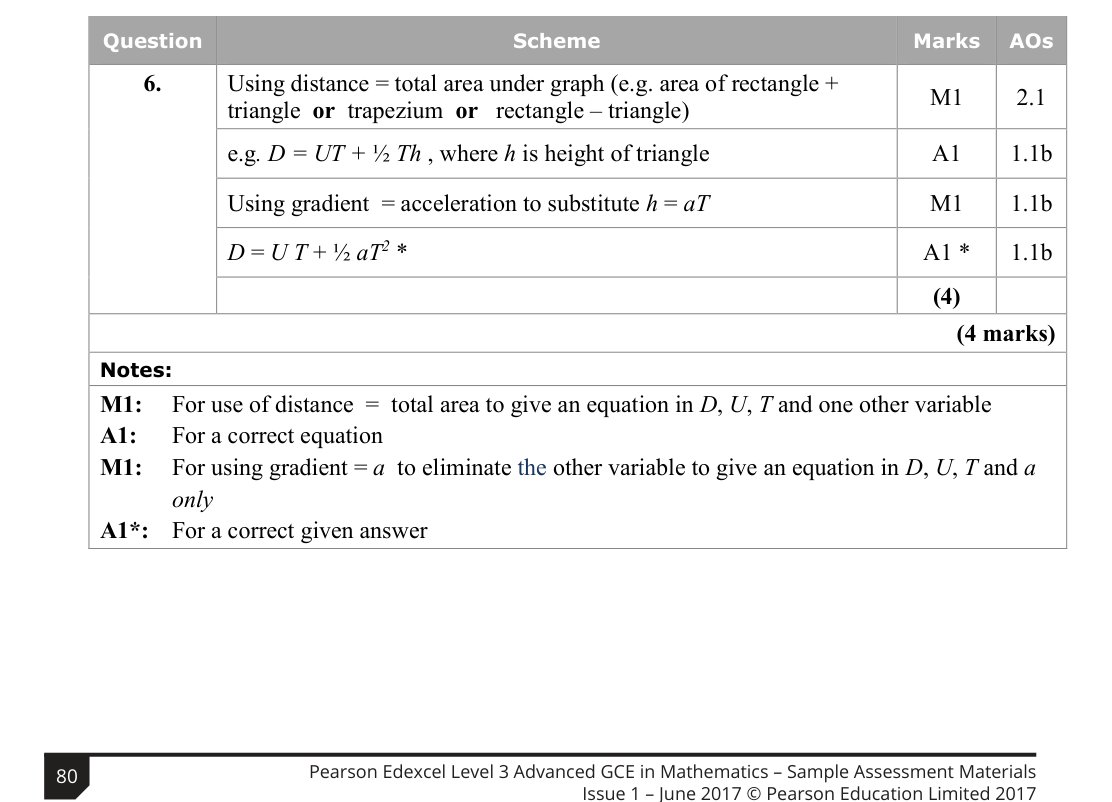

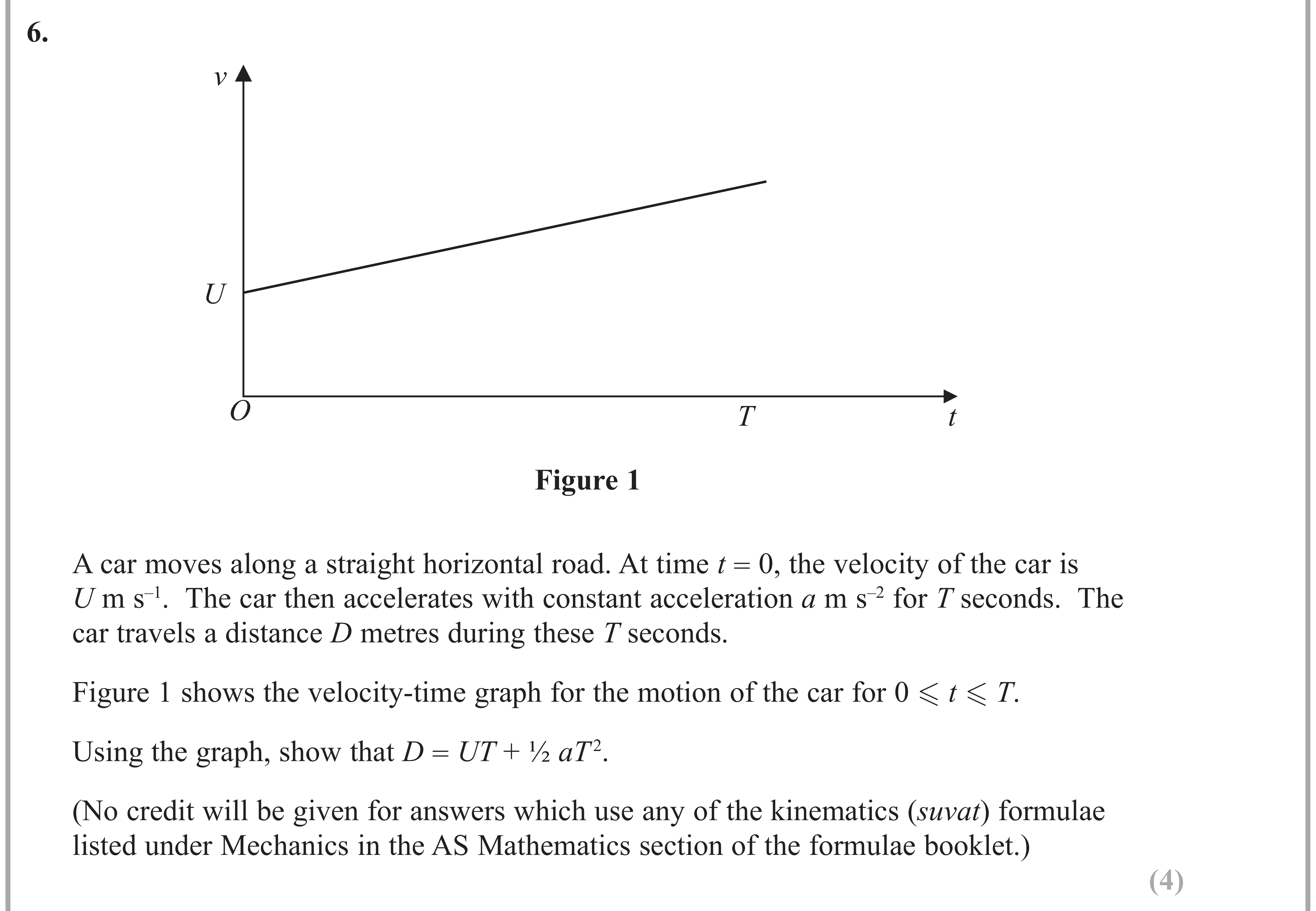

Q6
Velocity Time Graphs
Edexcel June 2017 4 marks Paper 2Statistics and Mechanics
▼
Q7
Velocity Time Graphs, Constant Acceleration 1d
Edexcel June 2018 7 marks Paper 2Statistics and Mechanics
▼

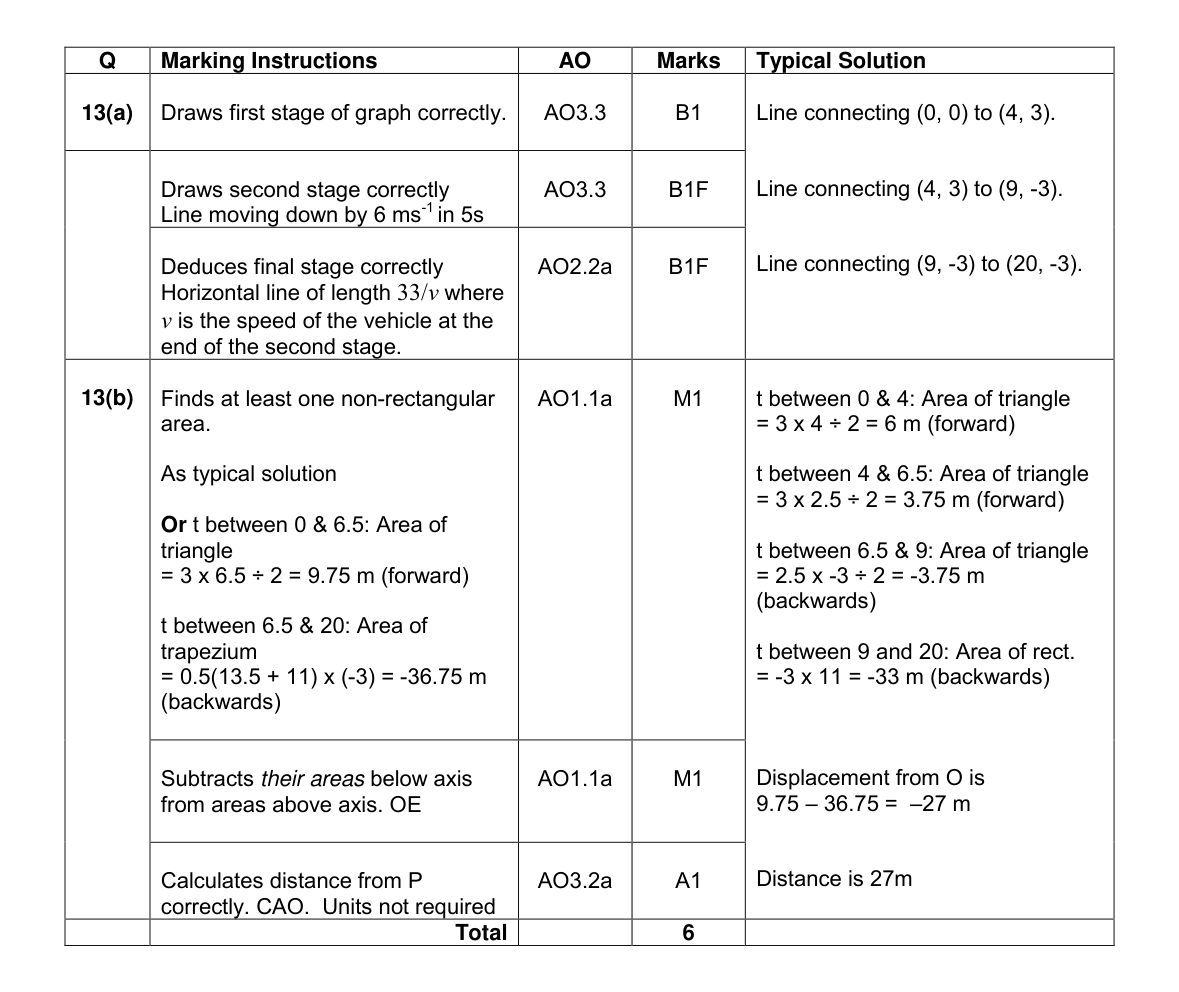

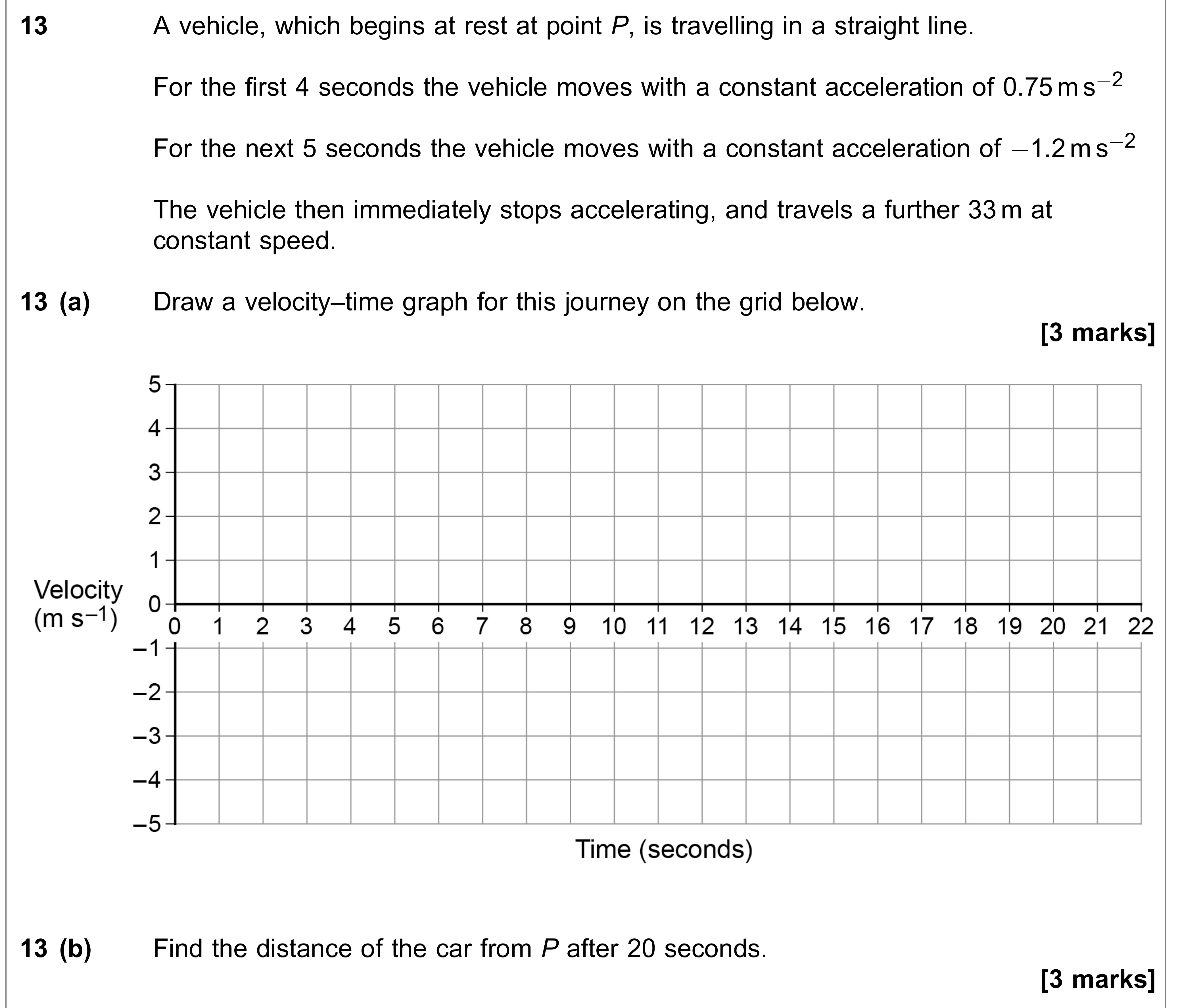

Q13
Velocity Time Graphs
AQA June 2018 6 marks Paper 1Pure and Mechanics
▼
Q10
Velocity Time Graphs, Variable Acceleration 1d
OCR June 2019 8 marks Paper 2Pure and Mechanics
▼

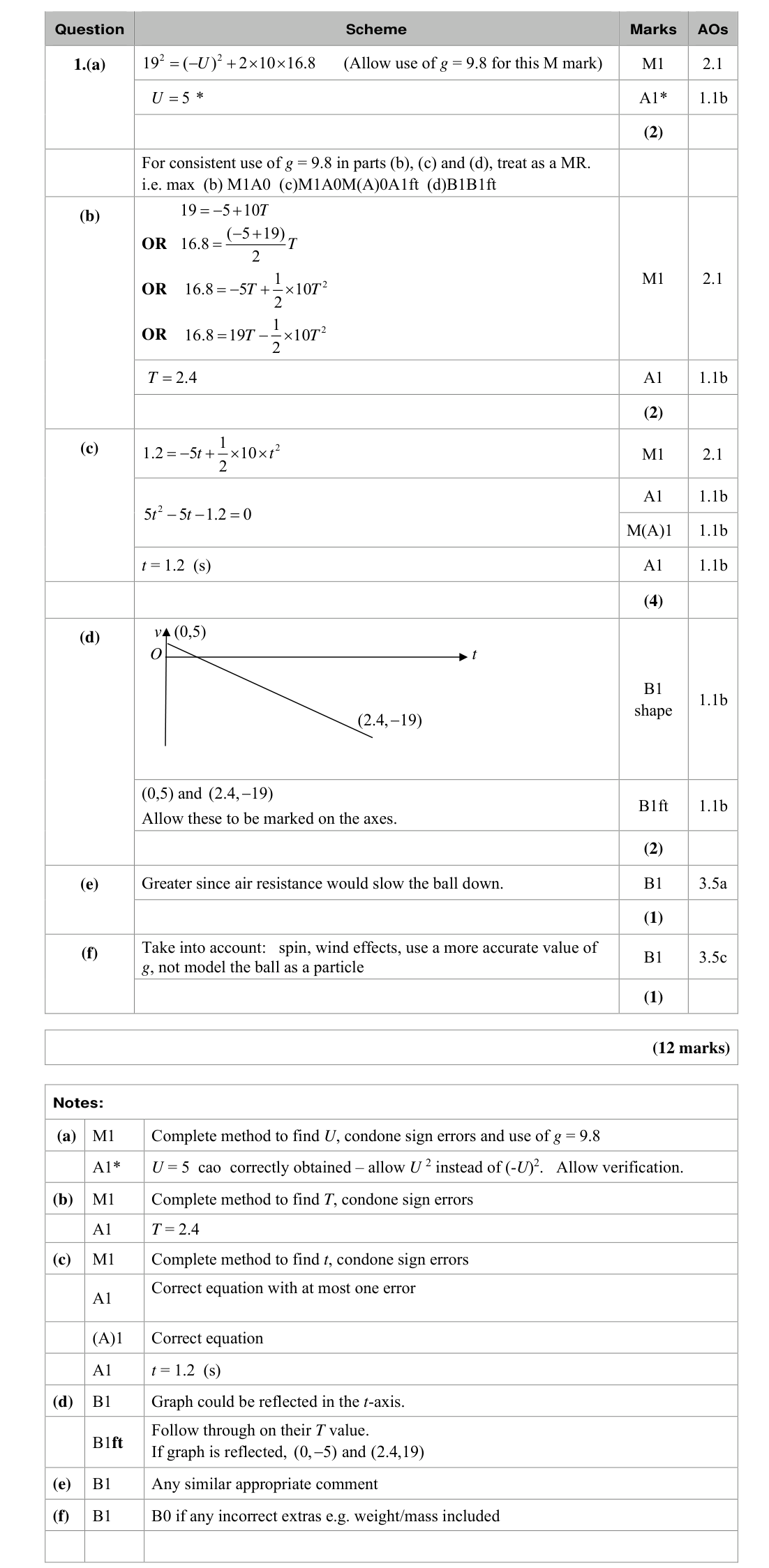

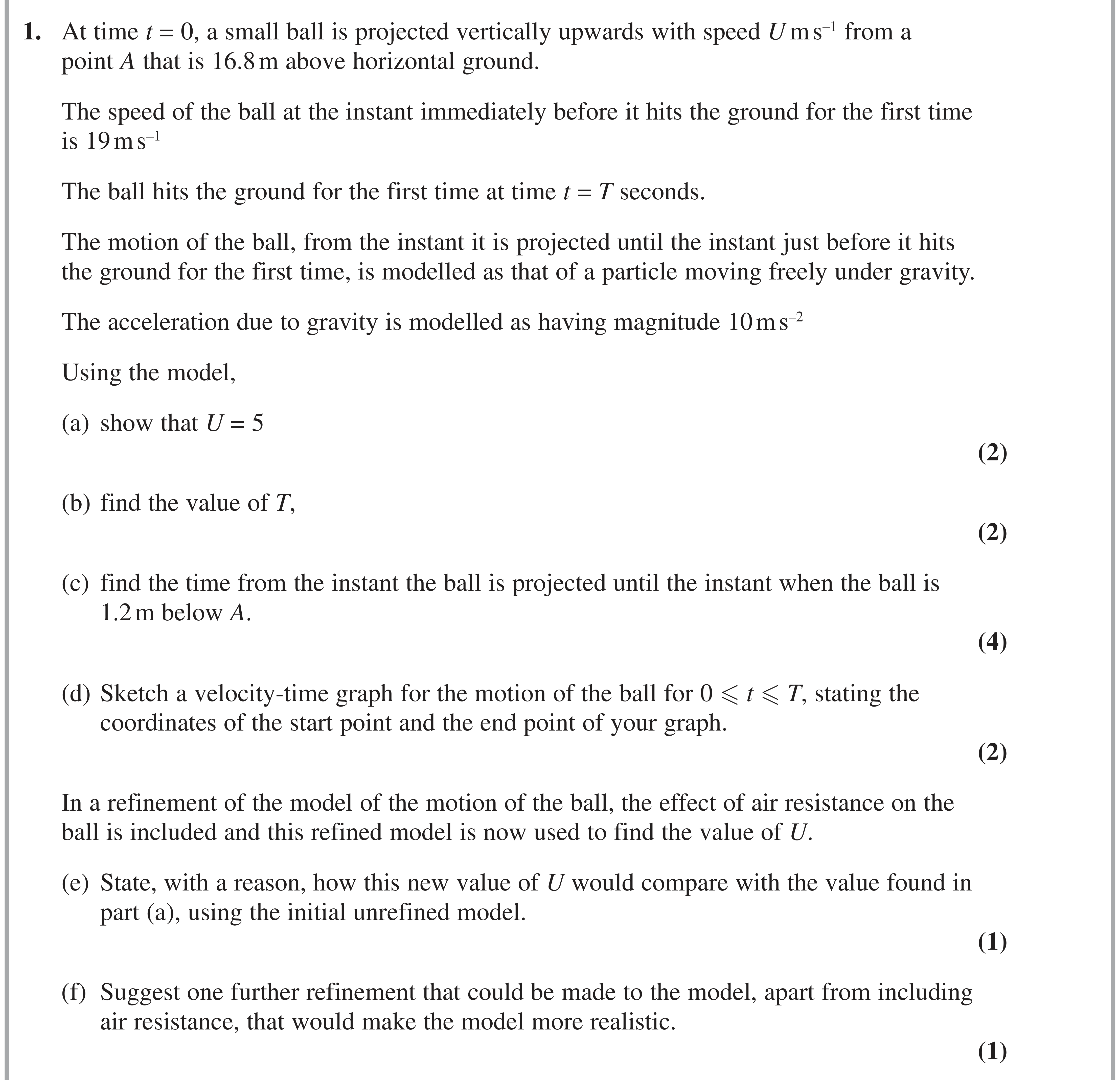

Q1
Vertical Motion under Gravity, Velocity Time Graphs
Edexcel June 2020 12 marks Paper 22Mechanics
▼

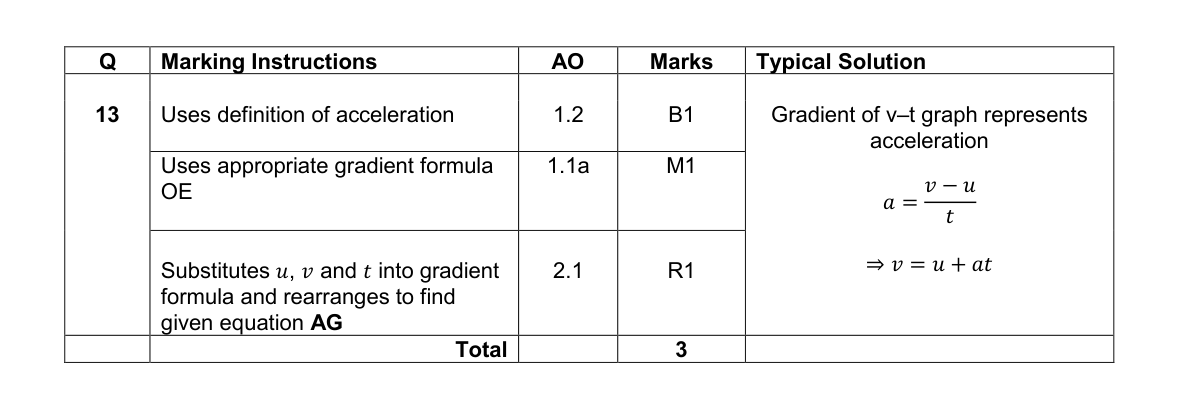

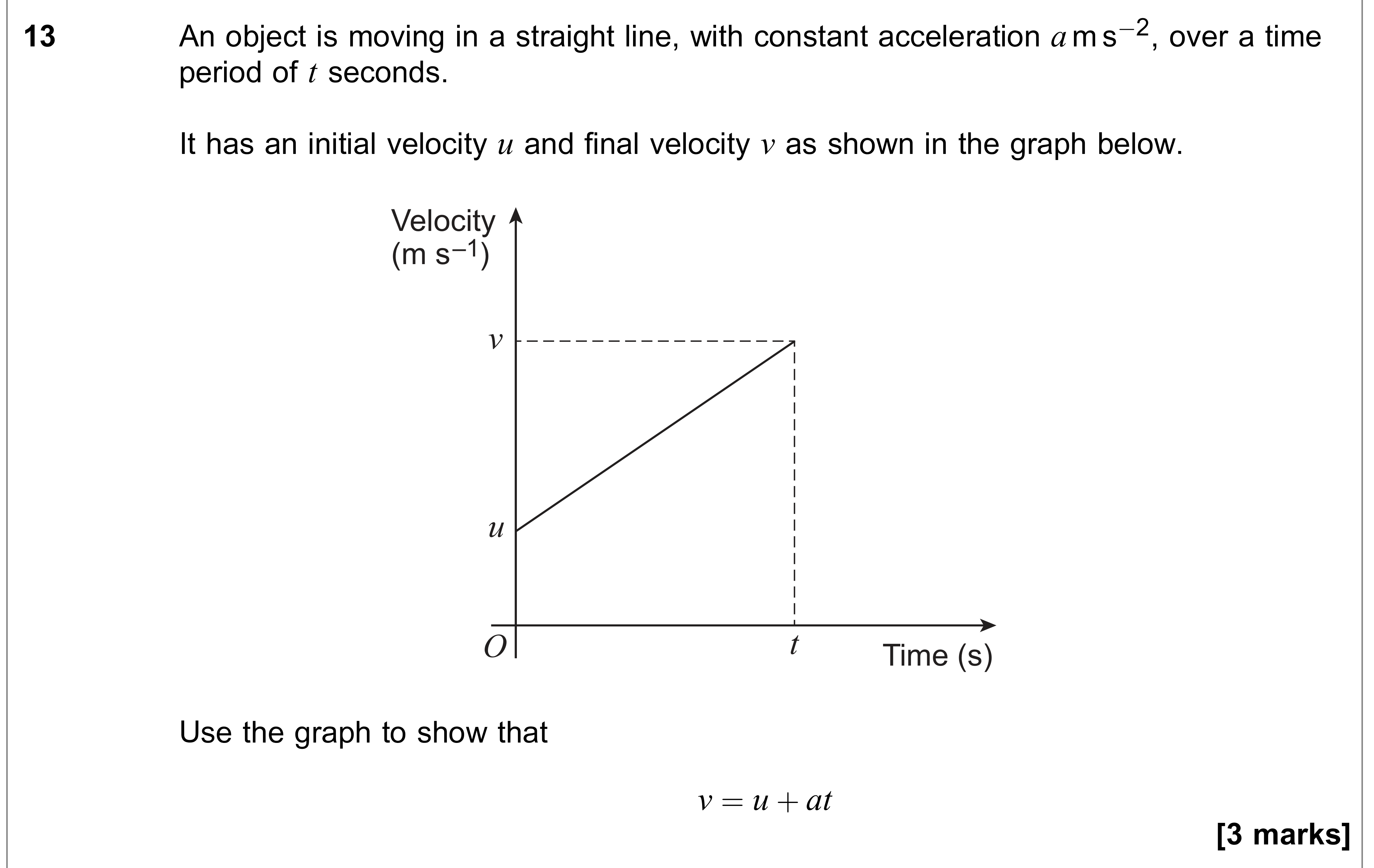

Q13
Velocity Time Graphs
AQA June 2020 3 marks Paper 1Pure and Mechanics
▼

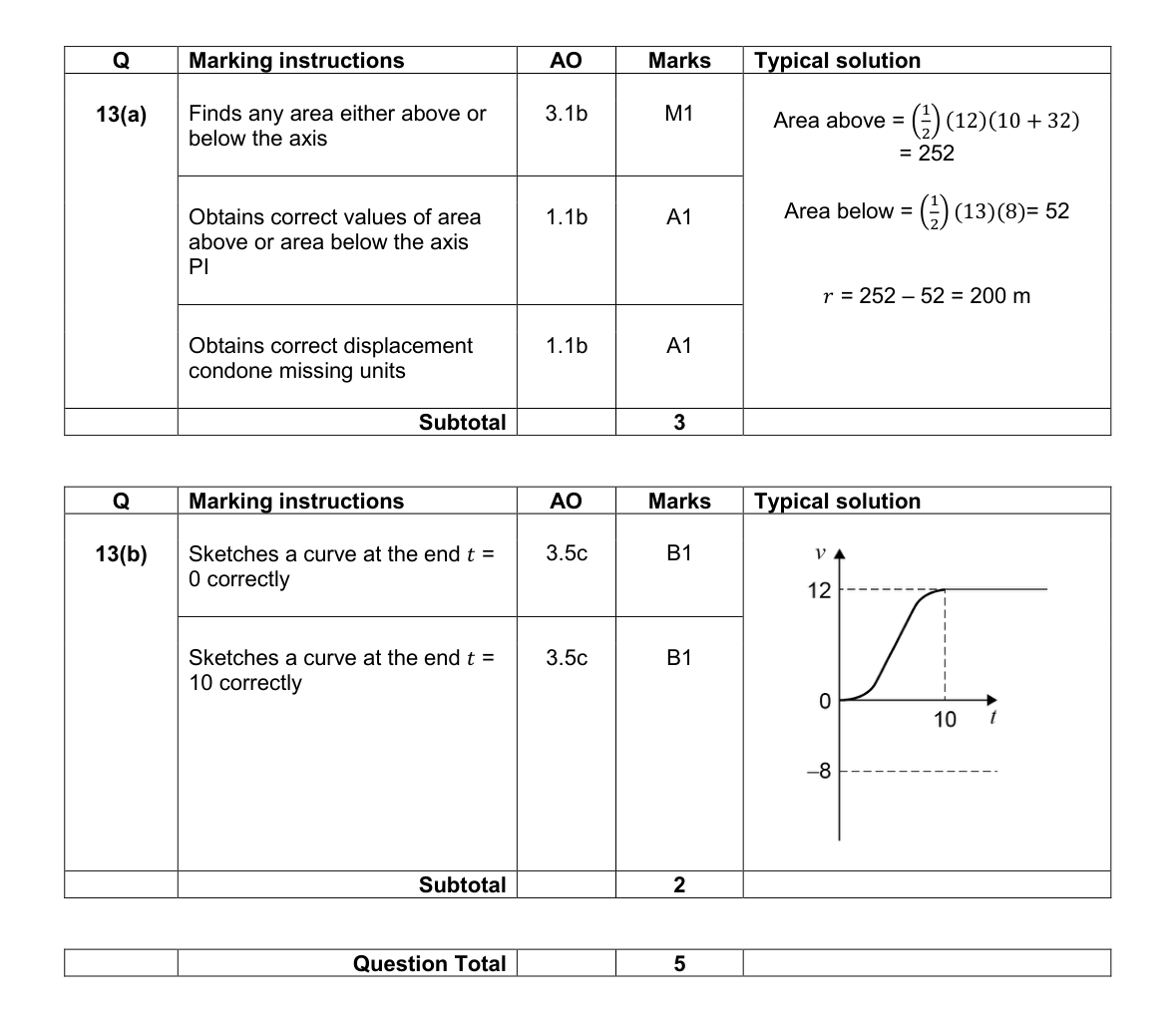

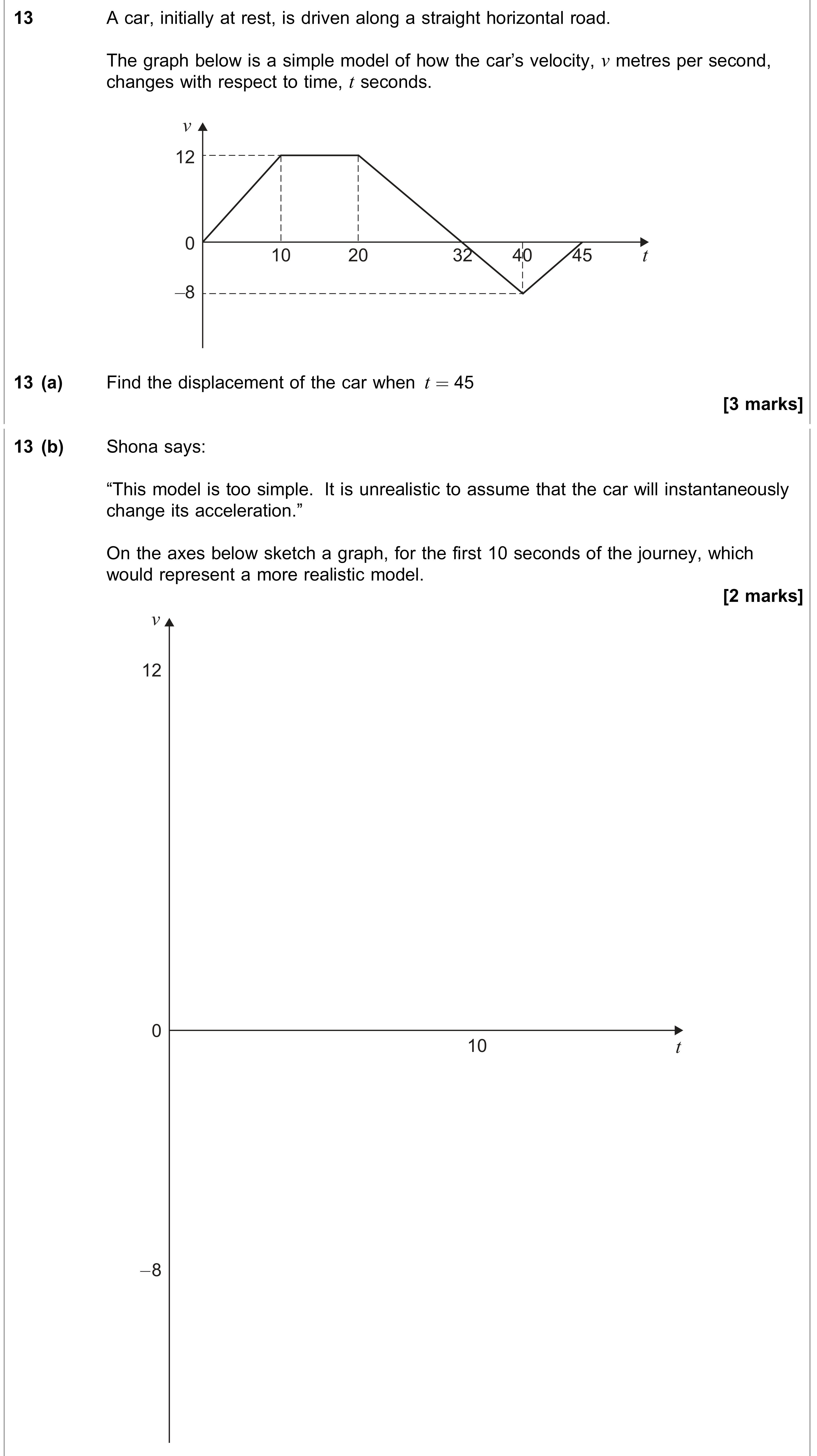

Q13
Velocity Time Graphs
AQA June 2021 5 marks Paper 1Pure and Mechanics
▼

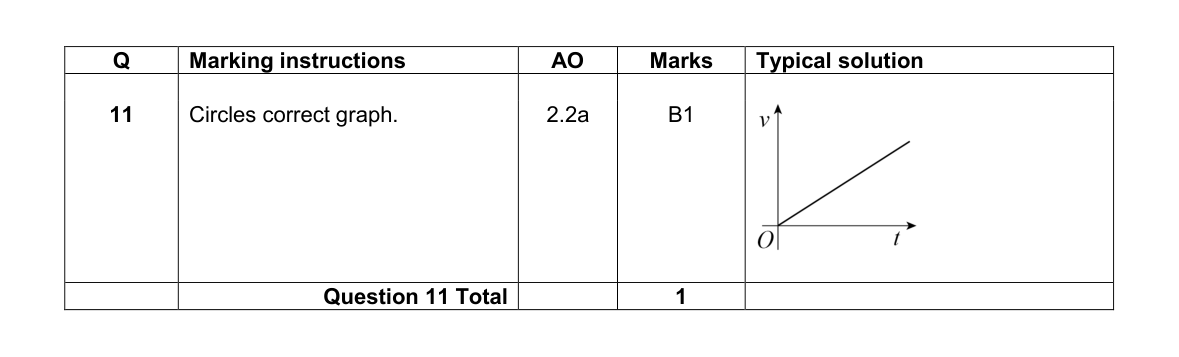

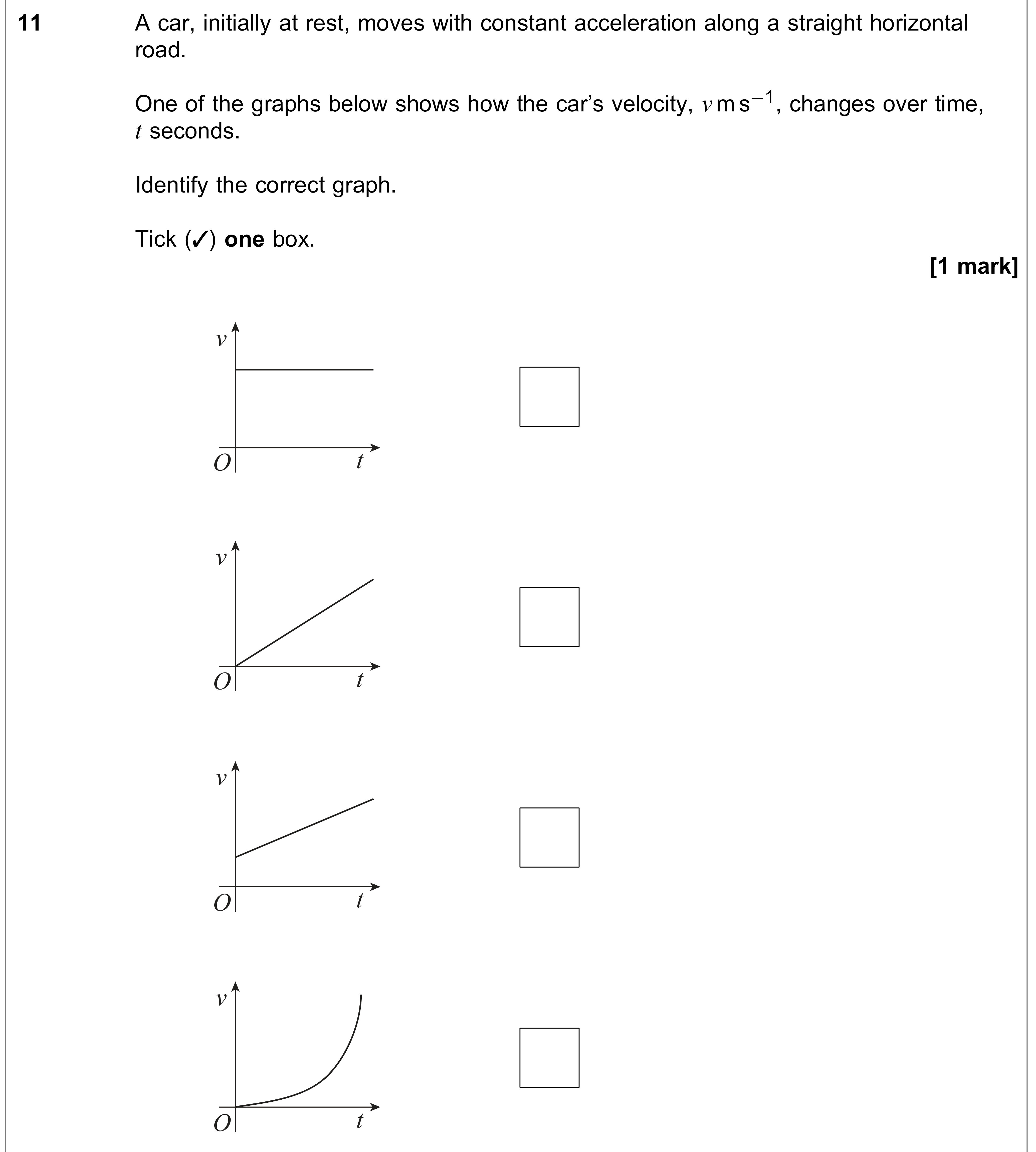

Q11
Velocity Time Graphs
AQA June 2022 1 marks Paper 1Pure and Mechanics
▼

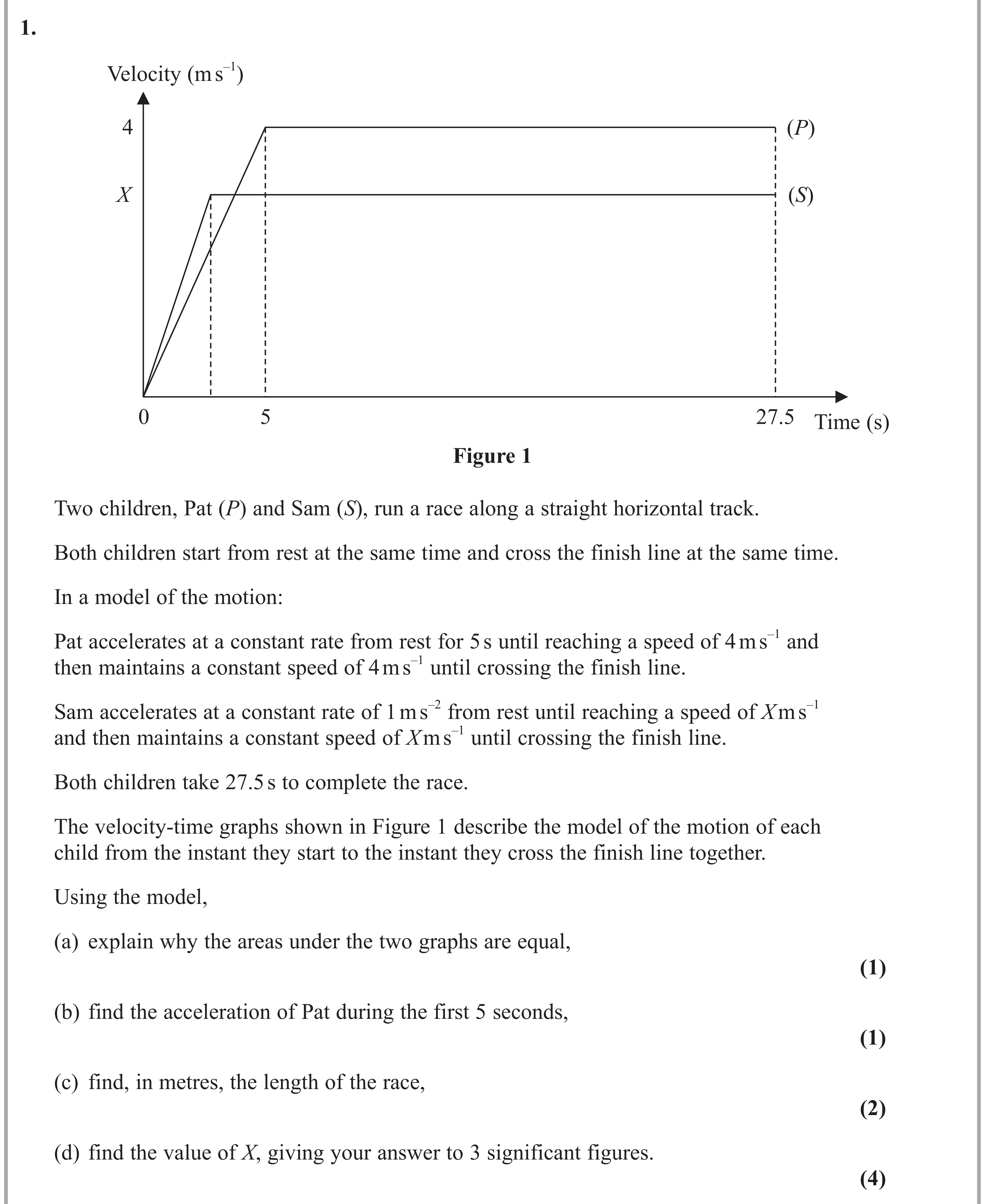

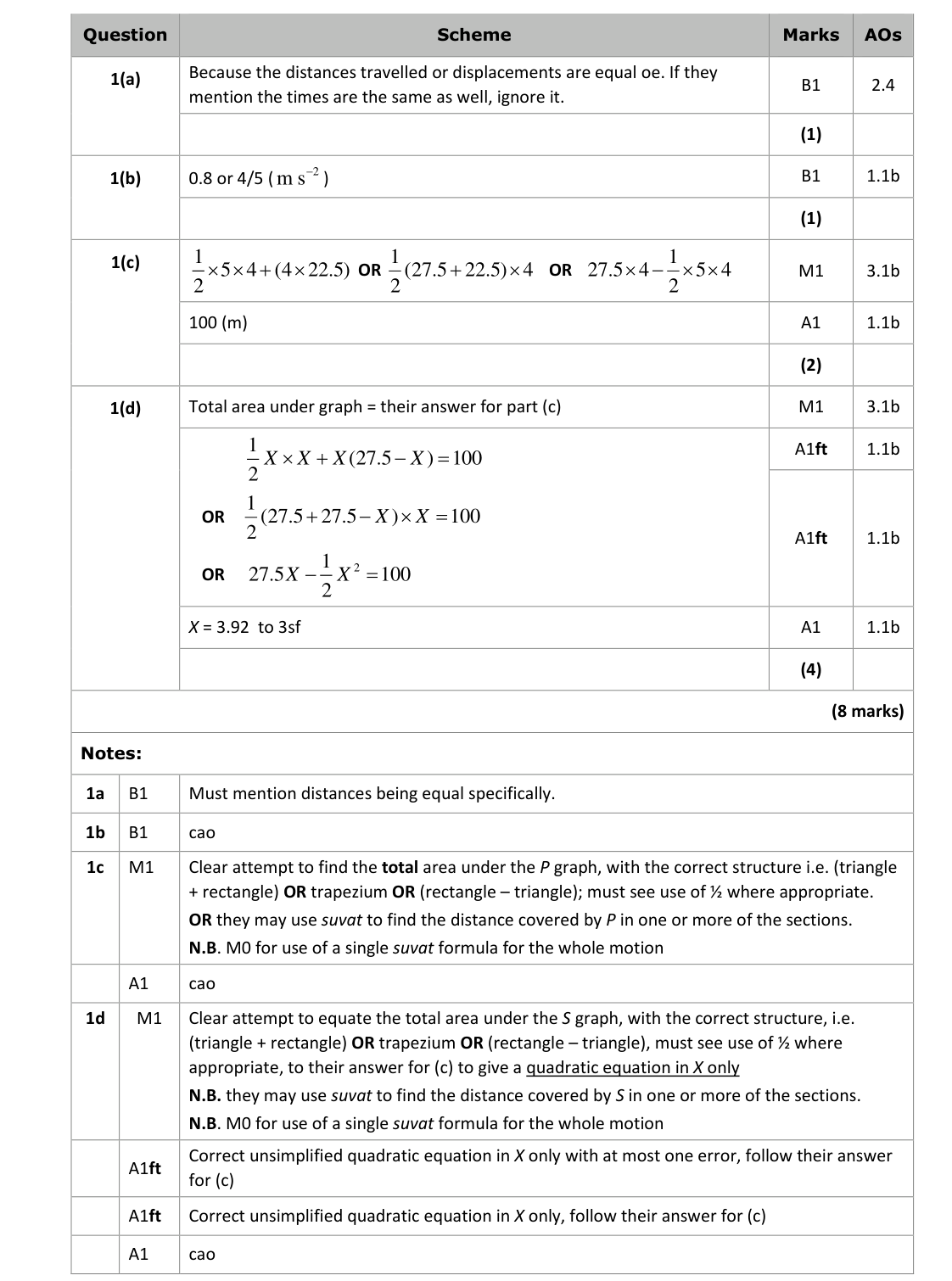

Q1
Velocity Time Graphs
Edexcel June 2023 8 marks Paper 22Mechanics
▼
Q9
Velocity Time Graphs, Constant Acceleration 1d
OCR June 2023 4 marks Paper 2Pure and Mechanics
▼

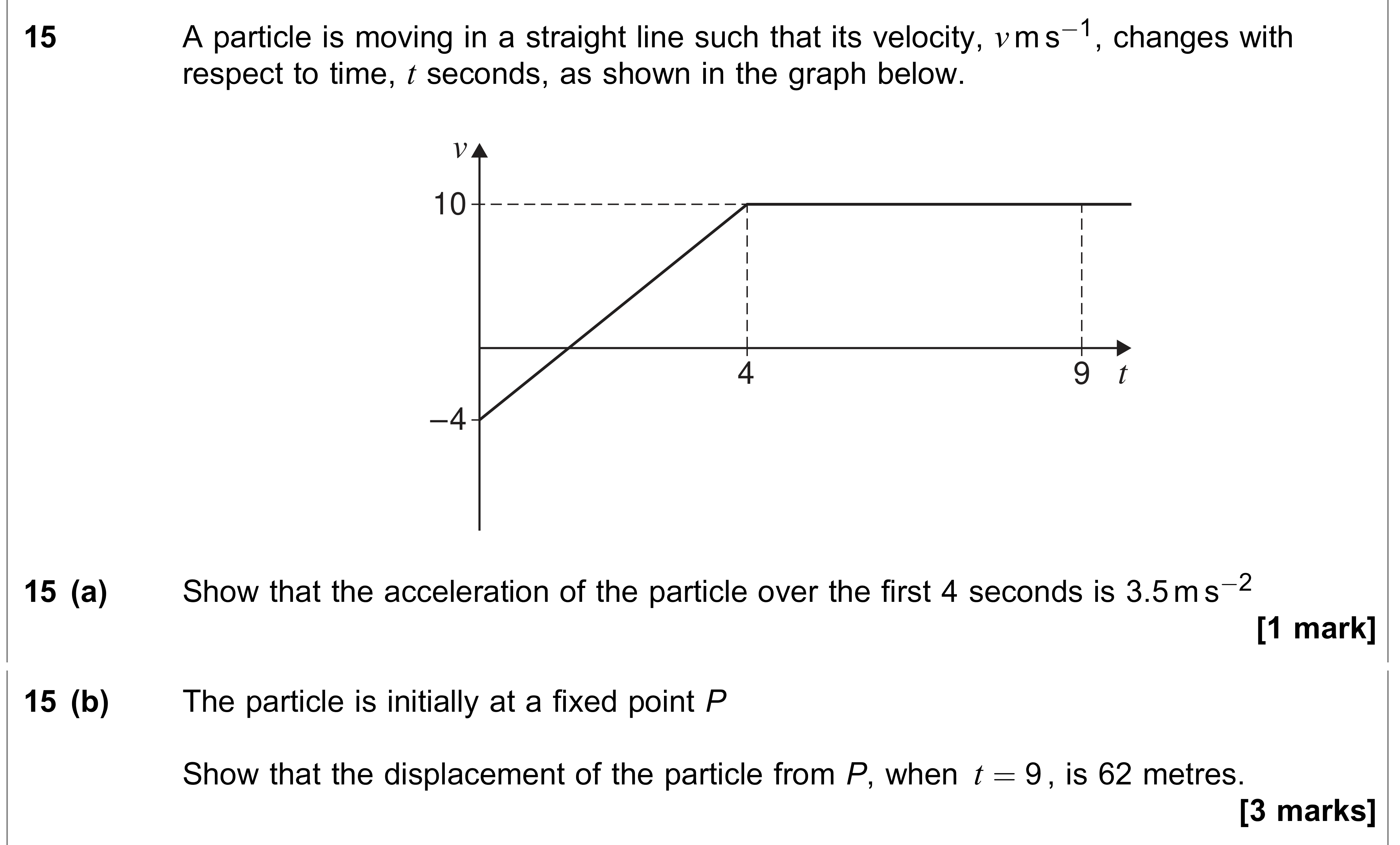

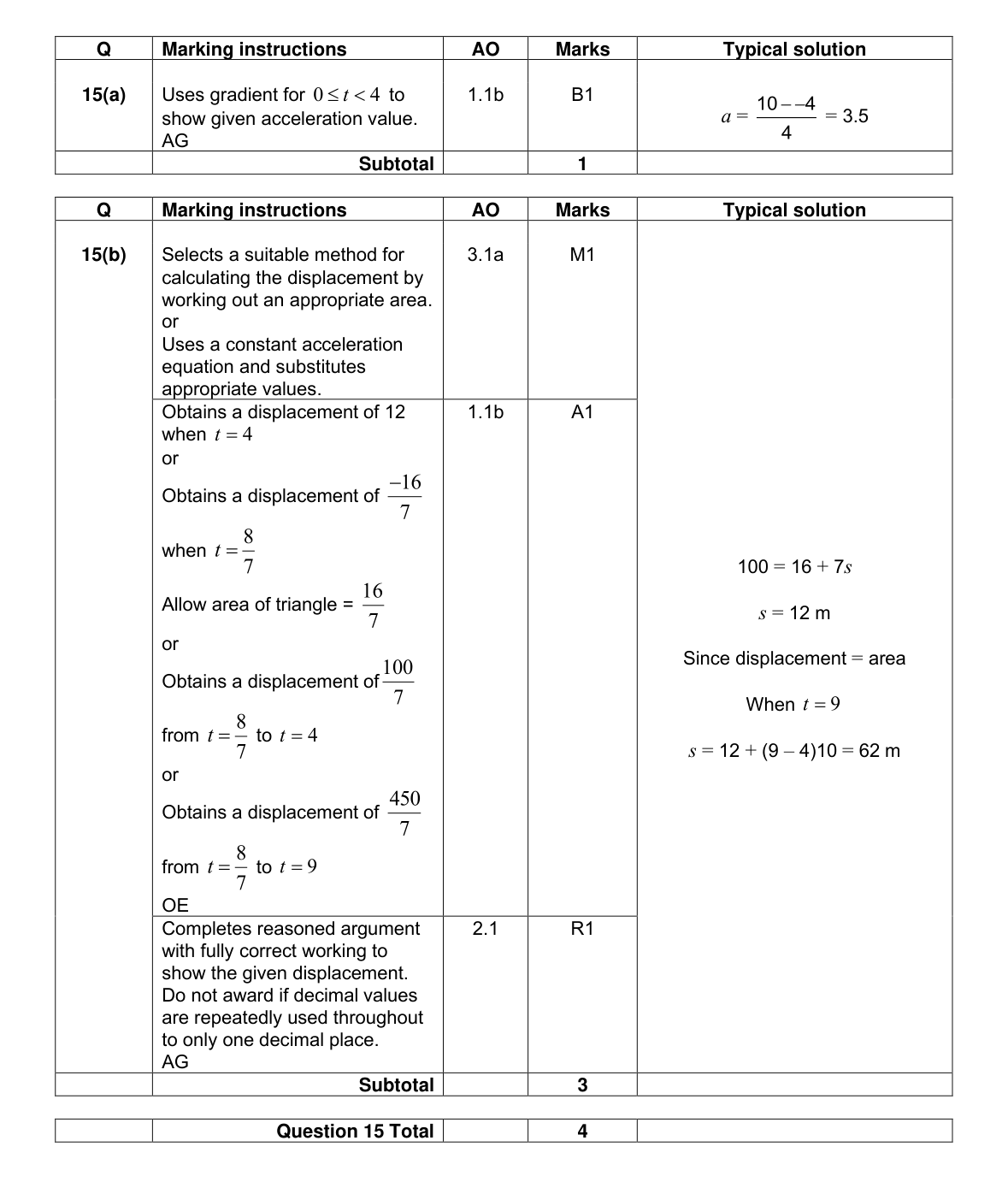

Q15
Velocity Time Graphs
AQA June 2023 4 marks Paper 1Pure and Mechanics
▼

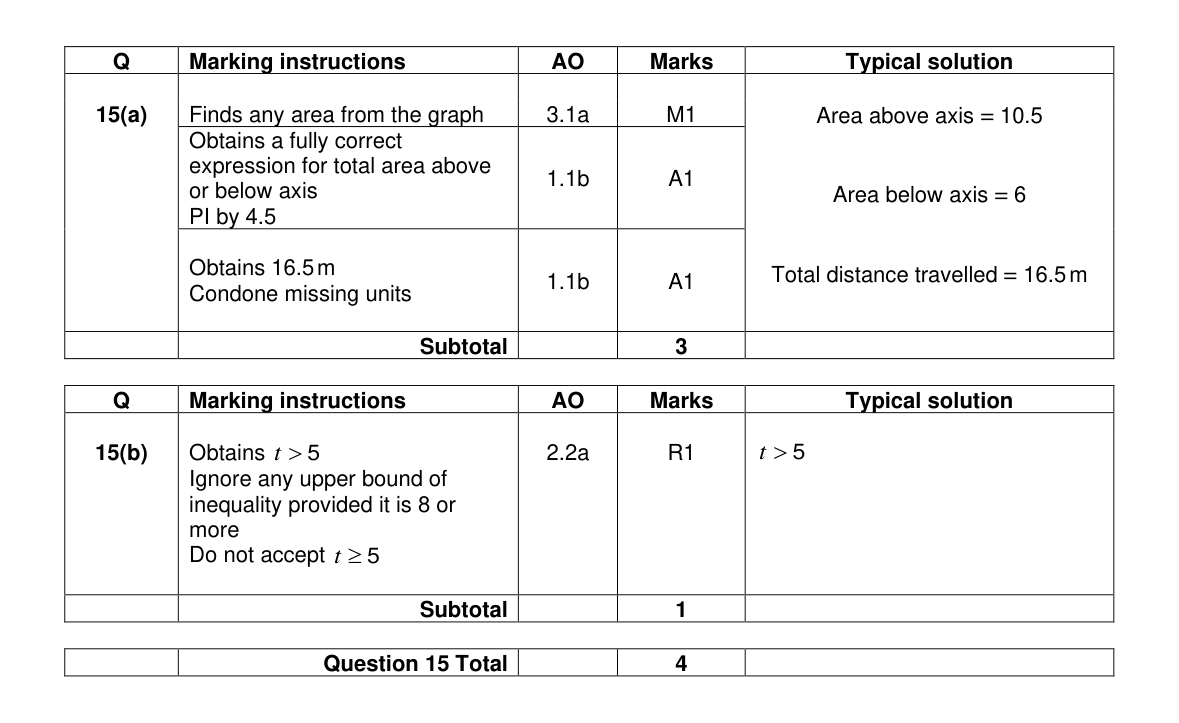

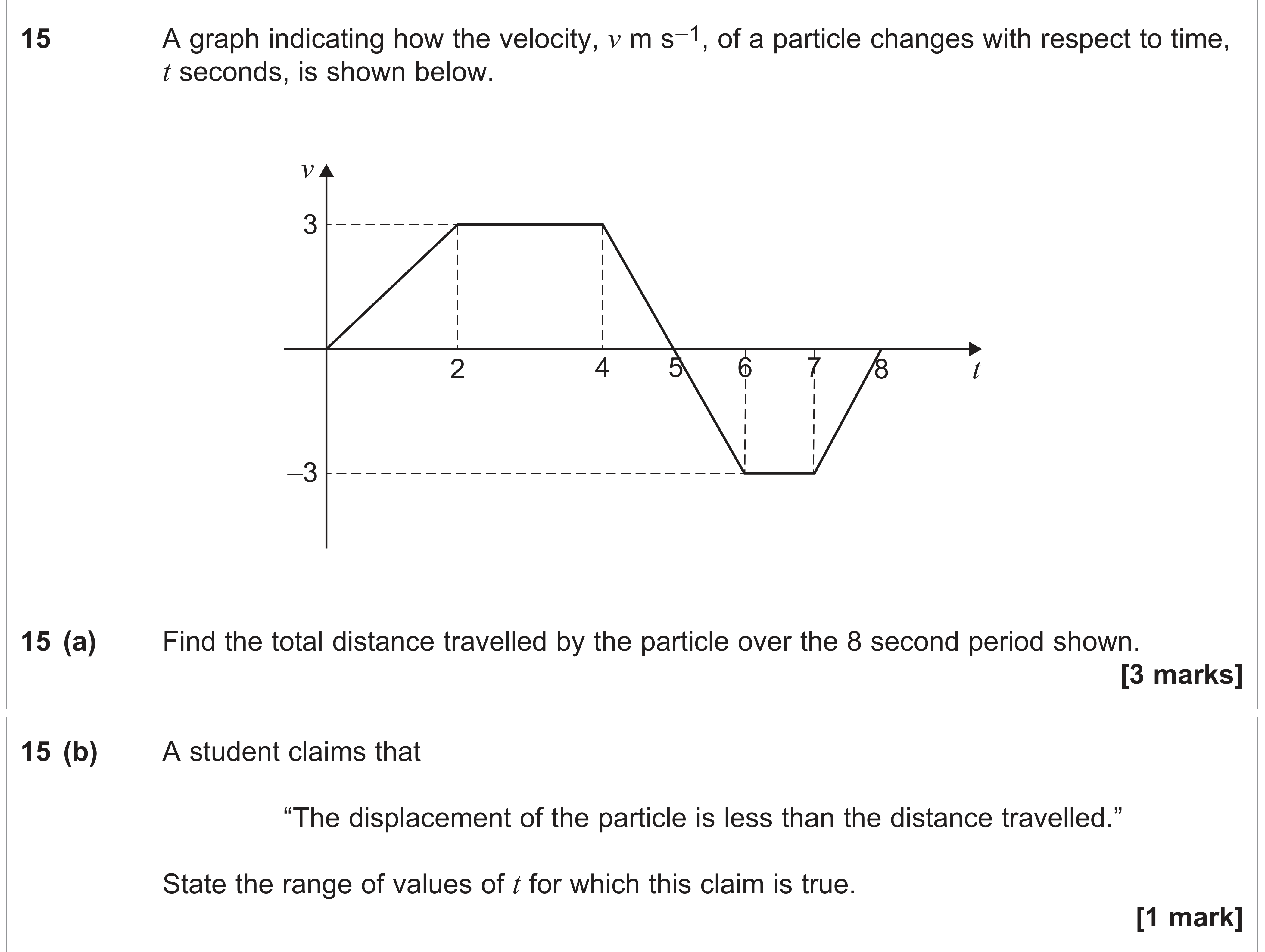

Q15
Velocity Time Graphs
AQA June 2024 4 marks Paper 1Pure and Mechanics
▼

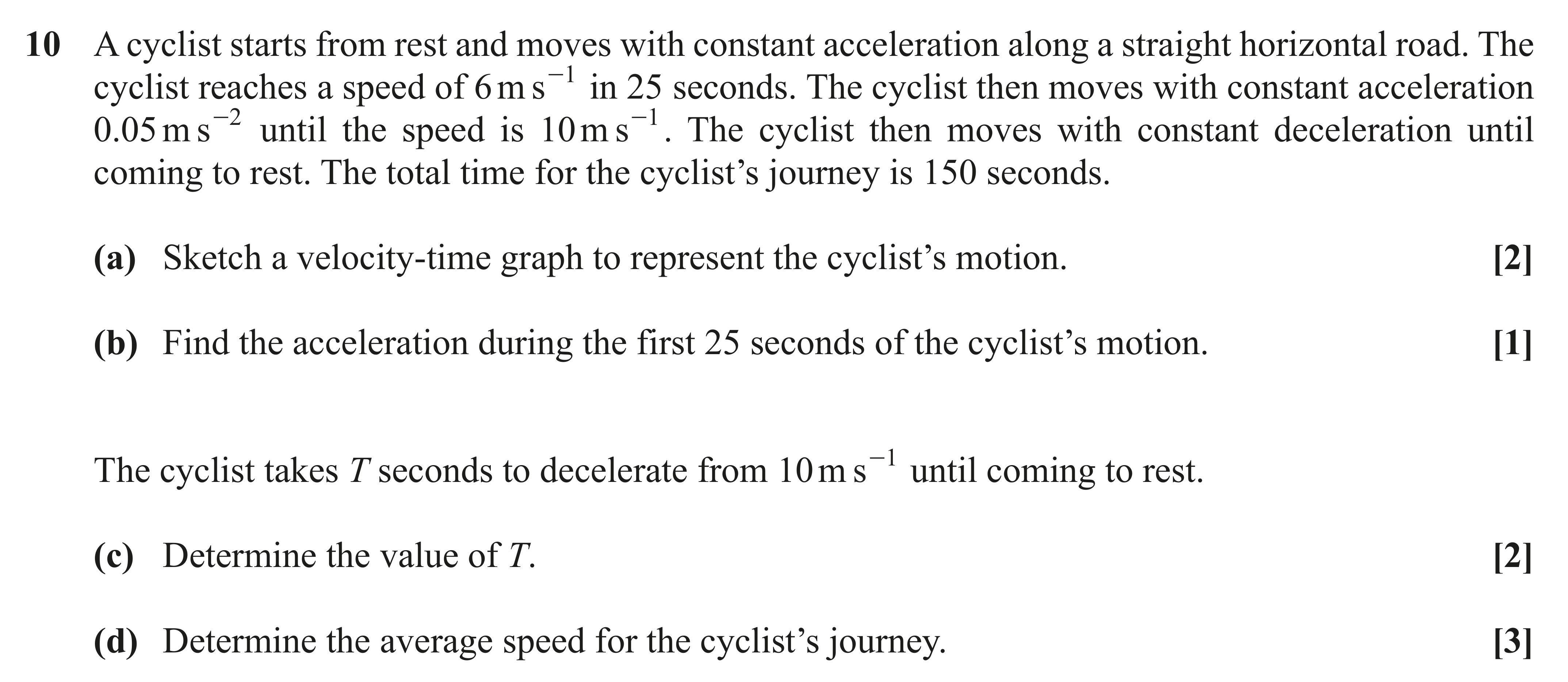

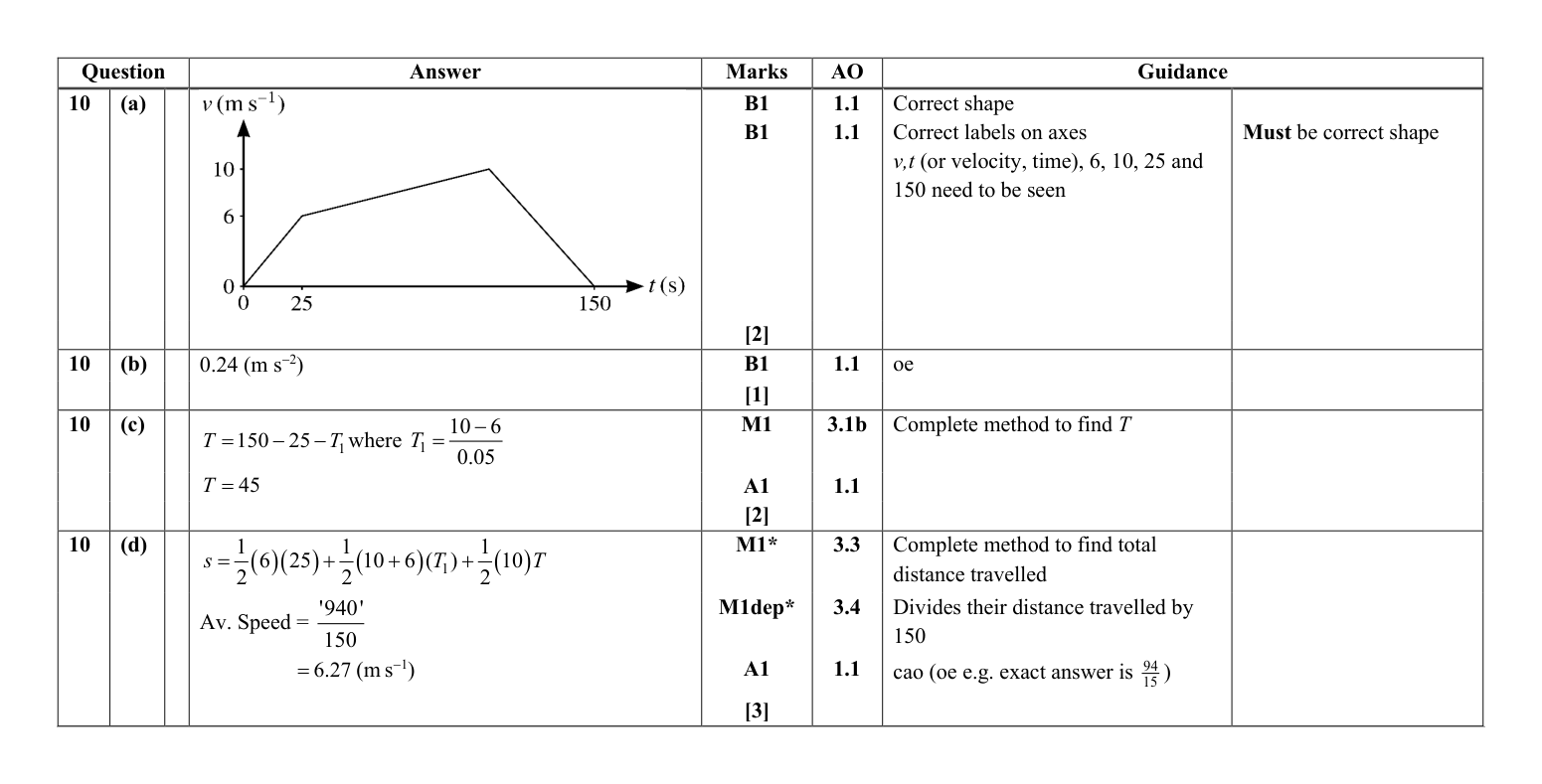

Q10
Velocity Time Graphs
OCR November 2021 8 marks Paper 2Pure and Mechanics
▼

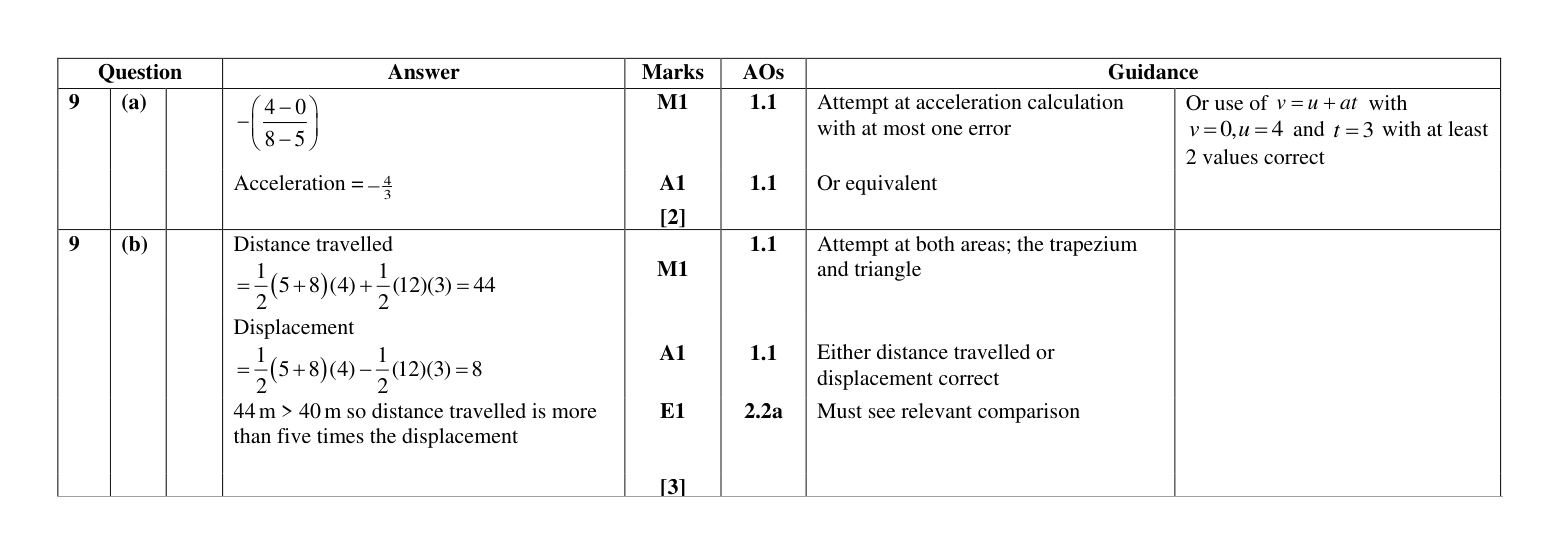

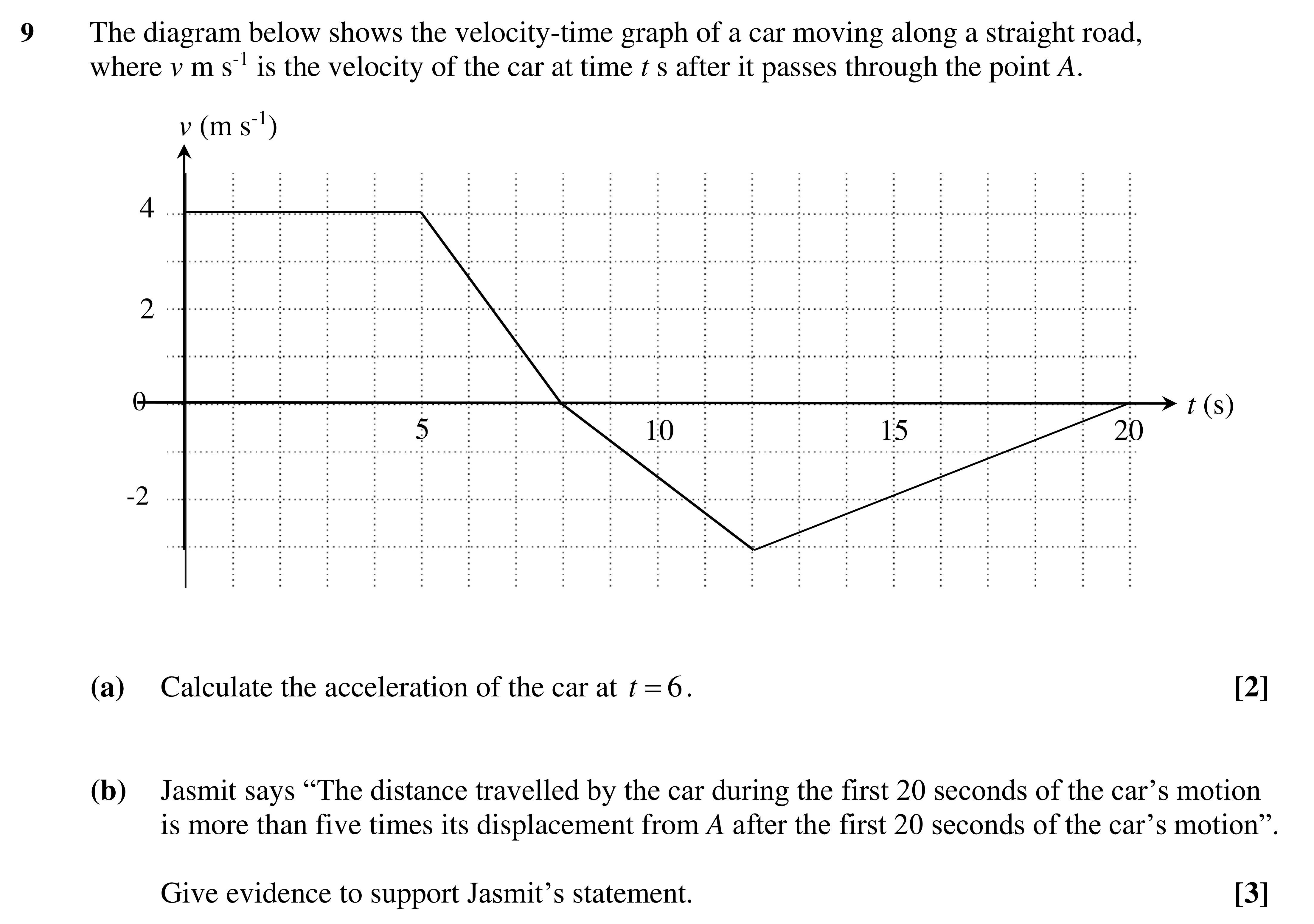

Q9
Velocity Time Graphs
OCR Sample Paper 2018 5 marks Paper 2Pure and Mechanics
▼
